Unit 1 Task 05
Equipment
-
Drawing Board
-
30/60 Set Square
-
Pencil
-
Elipse Template
-
Fineliner
-
Adobe Illustrator
Support Worksheets U1 T05 A
-
Printed Worksheet of Camera isometric
Illustrator Template U1 T05 B
-
Illustrator Isometric Template
Class Time
-
5 periods
Due
-
Friday 1 March
Work Submitted
-
place task sheets in your folio
-
Sheets A & B
Assessment
-
completion of 2 sheets
Extra Work - The Circle Challenge!
Drawing circles in Isometric.
Click on this PDF to complete a Step-by-Step guide to drawing a bottle in Isometric.
Take the challenge!
Task 5 ISOMETRIC Drawing
Next-to-do on the drawing list is the Paraline drawing systems.
Paraline drawing are so called because they are constructed using sets of parallel lines.
The two that we use in VisComm are Isometric and Planometric.
This task is all about the Isometric.

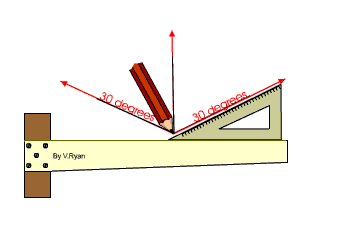

Isometric is constructed with starting angles of 30/30. To draw this we can use the aid of a set square and a drawing board. It work like the animation below.
Using a drawing board and a 30/60 set square complete worksheet 5A - a camera drawn isometric. The measurements are on the worksheet.
-
Draw an overall rectangular solid first using the measurements on the worksheet
-
Add the details to the shape by projecting the measurements around and inside the basic solid.
-
Use an ellipse template to draw the circles
SHEET A Isometric Camera
Using a drawing board and a 30/60 Set Square complete worksheet 5A - a camera drawn isometric.
-
Draw an overall rectangular solid first using the measurements on the worksheet
-
Add the details to the shape by projecting the measurements around and inside the basic solid.
-
Use an ellipse template to draw the circles
Digital Template B Isometric Grid
-
Open the Illustrator Isometric Template
-
Create a new layer(s) to draw over the template
-
Using the grid draw a set of buildings
-
use a simple colour scheme to help create depth
For added inspiration Click on the images below to see BIG!
Isometric drawings are great for drawing objects such as furniture and simple man made objects. Iso metric literally means equal measurement - so you can measure depth, height and width distances along the three axes of a shape drawn in this system.
Isometric drawings are great for drawing objects such as furniture and man-made objects. Iso metric literally means equal measurement - so you can measure depth, height and width distances along the three axes of a shape drawn in this system.
